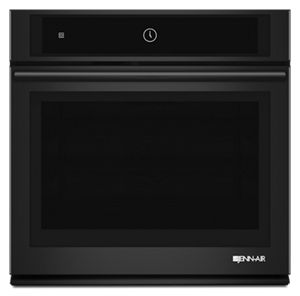

Black Floating Glass 30” Single Wall Oven with MultiMode® Convection System

Black Floating Glass 30” Single Wall Oven with MultiMode® Convection System

Signature Features

Multimode® Convection System

Three radiant elements provide consistent heat on every rack for evenly browned, perfectly cooked dishes.

Rapid Preheat

This convenient oven mode reduces the amount of preheat time while allowing you to bake on up to two oven racks.

5.0 Cubic Foot Oven Capacity

This oven offers generous capacity to cook multiple dishes at once, making it ideal for entertaining.

4.3-Inch Full Color Menu-Driven LCD Display

Allow the oven to guide you through its modes and functions with a brilliant, 4.3-inch full-color display. Controls outside of the LCD display light up or darken to show you relevant selections for intuitive navigation during use.

Common Cutout

Our double and single wall ovens fit into the existing cutout for nearly every competitor’s wall oven. Each oven fits into the smallest cutout, while its overall height also allows you to cover the remaining gap in the tallest cutout.

Telescoping Glide Rack

This roll-out rack lets you easily position and remove dishes.

My Creations

My Creations allows you to seamlessly combine up to three cooking modes and save the settings for your favorite recipes.

Technical Specifications

Details

Cooktop Combinations:
  • JEC3430
  • JEC3536
  • JEC4424
  • JEC4430
  • JEC4536
  • JGC1530
  • JGC1536
  • JGC2530
  • JGC2536
  • JGC7530
  • JGC7636
  • JIC4430
  • JIC4536
  • JIC4715GS
  • JIE4115GS
Design Expression: Black Floating Glass
Flush Installation Approved: Yes
Fuel Type: Electric
LP Convertible: No
Oven Configuration: Single Oven
Oven Type: Single
Power On Indicator Light: Yes
Oven Automatic Shut-Off: Yes
Oven Selections:
  • Clock
  • Delay Start
  • Keep Warm Setting
  • My Creations
  • Proofing
  • Sabbath Mode
  • Temperature Probe
  • Temperature-Sensor Baking
  • Time Bake

Oven Cavity Details

Bake Element Power: 2,800 W

Oven Cavity Details

Broiler Element Power: 4,000 W
Broiler Location: Top of Oven
Convection Element Type: Fan
Convection Element Power: 3,200 w
Convection Functions:
  • Bake
  • Broil
  • Roast
Door Broil Position: Closed
Door Removable: Yes
Hidden Bake Element: Yes
Installable Under Cooktop: Yes
Installable Under Oven: Yes
Interior Coating: Porcelain
Interior Color: Black
Light Type: Halogen
Number of Bake Elements: 1
Number of Broil Elements: 1
Number of Oven Lights: 2
Number of Oven Racks: 3
Number of Rack Guides: 6
Oven Cleaning Type: Self-Cleaning
Oven Cooking System: Convection
Self-Cleaning Oven Racks: No
Temperature Conversion: Yes

Exterior Details

Door Lock: Yes
Door Type: Metal & Glass
Handle Color: Black
Handle Material: Metal
Oven Window Size: Extra Large

Certifications

ADA Compliant: ADA Height and Side and Front Reach Compliant
CUL: Yes
Prop 65: Standard
UL: Yes
JJW2430DB
Black Floating Glass 30” Single Wall Oven with MultiMode® Convection System

Dimensions

Depth: 23-1/8 in
Depth With Door Open 90 Degree: 45-3/8 in
Gross Weight: 110 lbs
Height: 29-7/8 in
Net Weight: 92 lbs
Oven Capacity: 5 cu. ft.
Oven Interior Depth: 19 in
Oven Interior Height: 18 in
Oven Interior Width: 25 in
Width: 30 in

Controls

Control Type: Glass Touch Digital Display
Display Color: Full Color
Electronic Display Type: LCD Screen
Language Conversion: English/French
Light Control: Oven Light Touch Pad

Electrical

Power Cord Included: No
