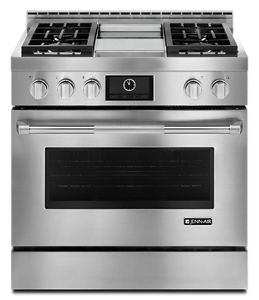

Pro-Style® 36" Gas Range with Griddle and MultiMode® Convection

Signature Features

Dual-Fan MultiMode® True Convection System

This system features a 1,200-watt oval heating element and two round fans that distribute heat evenly and thoroughly throughout the oven. Six different convection cooking modes, including bake, roast and broil, all deliver superbly consistent results.

Two 15,000 BTU Burners

Two high-heat burners offer powerful output, allowing you to cook several dishes at maximum heat at the same time.

Auto Convection Conversion

This convenient feature automatically converts conventional cook time and/or temperature from any recipe to the appropriate convection settings, taking the guesswork out of convection cooking for consistent, effortless results.

One 20,000 BTU Stacked PowerBurner

Each PowerBurner features two burners stacked in one location on the cooking service with a maximum output of 20,000 BTUs providing the power for high-temperature cooking techniques such as wok cooking and flash frying.

5,000 BTU Simmer Burner

With a power output ranging from 5,000 BTUs to a gentle 700 BTUs, this simmer burner gives you maximum control while simmering sauces and melting delicate ingredients like chocolate and butter.

Four Sealed Burners

The sealed burners, which prevent spills and drips from entering the burner box, make it easy to maintain a pristine cooking surface.

Electric Griddle (1,320 Watts)

This high-performance, 1,320-watt chrome griddle provides even heat distribution for consistent cooking along its entire surface. Its durable chrome surface allows for faster cooking at lower temperatures, and can be easily cleaned to maintain its sleek appearance.

7-Inch Full-Color Touch-Anywhere LCD Display

This luxury double wall oven’s stylish LCD control panel features dynamic touch-screen technology, which allows you to navigate effortlessly through settings like temperature and cooking time.

Convertible to LP

This range allows you to easily adapt your energy source from natural gas to propane.

Technical Specifications

Configuration and Overview


Size: 36 in
Fuel Type: Gas
Range Type: Professional
LP Convertible: Yes
Prop 65: Standard
UL: UL
ADA Compliant: ADA Height and Operation Compliant

Appearance


Handle Material: Metal
Door Type: Metal & Glass
Handle Color: Stainless Steel

Oven Details


Drawer Type: None
Power On Indicator Light: Yes
Automatic Convection Conversion Temperature Adjust: Yes
Oven Cooking System: Convection
Interior Color: Grey
Oven Control Type: Electronic Touch
Broiler Location: Top of Oven
Convection Element Type: Dual-Fan
Number of Oven Lights: 3
Oven Light Type: Halogen
Oven Interior Width: 13.0 in
Oven Interior Depth: 17-5/8 in
Oven Interior Height: 16.0 in
Number of Oven Racks: 3
Number of Rack Guides: 5
Oven Rack Type: 1 Gliding Roll-Out, 2 Heavy Duty
Hidden Bake Element: Yes
Convection Functions:
  • Bake
  • Roast

Cooktop Details


Heating Element On Indicator Light: No
Hot Surface Indicator Light: Yes
Power Outage Compatible: No
Cooktop Element Style: Sealed Burner
Cooktop Surface Color: Black
Cooktop Surface Material: Porcelain Coated Steel
Ignition Type: Electronic
Number of Cooking Element-Burners: 4
Number of Grates: 3
Cooktop Control Location: Front

Cooktop Details


Grate Details:
  • Dishwasher Safe
  • Matte Finish
  • Continuous
  • Cast Iron Grates
Cooktop Control Type: Knobs
Left Front Element-Burner Type: Dual Flame
Left Rear Element-Burner Power: 15,000 BTU
Left Rear Element-Burner Type: Sealed Burner
Right Front Element-Burner Power: 15,000 BTU
Right Front Element-Burner Type: Sealed Burner
Right Rear Element-Burner Power: 5000 BTU
Right Rear Element-Burner Type: Simmer
Left Front Element-Burner Power: 20,000 BTU

Certifications


ADA Compliant: ADA Height and Operation Compliant

Features


Griddle: Included
Power Outage Compatible: No

Exterior


Oven Door: Metal & Glass
Oven Window Size: Large

Details


Oven Rack Type: 1 Gliding Roll-Out, 2 Heavy Duty
Oven Cleaning Type: Self-Cleaning
Convection Element Type: Dual-Fan
Number of Rack Guides: 5
Selection:
  • Proofing
  • Clock
  • Control Lock
  • Delay Start
  • Temperature Probe
  • Timer
  • Sabbath Mode

EndecaProps


ProductOutletCategories: Cooking

GDS


isBaseUnit: true
GPC Code: 10003690
isConsumerUnit: true
IsInvoiceUnit: true
IsOrderableUnit: true
Product Type: EA
UDEX: 1100400623
JGRP536WP

Dimensions


Capacity: 5-1/10
Depth With Door Open 90 Degree: 45-3/4 in
Depth: 27-1/8 in
Height: 35-3/4 in
Width: 36.0 in

Electrical


Hz: 60
Volts: 120
Power Cord Included: Yes

Controls


Knob Color: Color Coordinated
Knob Type: Metal
Electronic Display Type: Digital

Design Type


Design Expression: Pro-Style®
