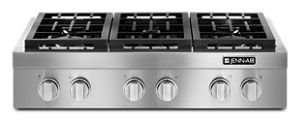

Pro-Style® 36"Gas Rangetop

Pro-Style® 36"Gas Rangetop

Signature Features

20,000 BTU Stacked PowerBurner

This luxury rangetop’s powerful burner delivers exceptionally high heat for cooking methods such as flash frying and wok cooking.

Electronic Ignition and Flame-Sensing™ Re-ignition

Electronic ignition and Flame-Sensing™ re-ignition ensure a continuous flame that reignites automatically if blown out – even at the lowest setting.

Four Sealed Burners

The sealed burners, which prevent spills and drips from entering the burner box, make it easy to maintain a pristine cooking surface.

Three 15,000 BTU Burners

Three high-heat burners offer powerful output, allowing you to cook several dishes at maximum heat at the same time.

Oversized Stainless-Steel Knobs with Diamond Etching

This luxury rangetop’s heavy-duty knobs are inspired by professional kitchens, with substantial heft and diamond etching to ensure slip-proof control while cooking.

Cast Iron Continuous Grates

These heavy-duty grates form a continuous grid across the rangetop, allowing you to easily slide heavy pans from one burner to another as you cook.

5,000 BTU Simmer Burner

The simmer burner provides even, low-output heat that prevents scorching and can be reduced to as low as 500 BTUs for delicate tasks such as melting chocolate.

Convertible to LP

This rangetop allows you to easily adapt your energy source from natural gas to propane.

Technical Specifications

Exterior Details


Knob Type: Metal
Knob Color: Stainless Steel

Details


Design Expression: Pro-Style®
Digital Display: No
Fuel Type: Gas
LP Convertible: Yes - Kit Included

Cooktop Details


Cooktop Surface Color: Black
Cooktop Surface Material: Ceramic Glass
Griddle Included: N/A
Heating Element On Indicator Light: No
Hot Surface Indicator Light: No
Ignition Type: Flame-Sensing™ Re-ignition
Installs Over Built-In Oven: Yes

Element/Burner Details


Center Front Element-Burner Power: 15,000 BTU
Center Front Element-Burner Type: High Output
Center Rear Element-Burner Power: 5,000 BTU
Center Rear Element-Burner Type: Simmer
Cooktop Element Style: Sealed Burner
Cooktop Type: Rangetop

Element/Burner Details


Left Front Element-Burner Power: 20,000 BTU
Left Front Element-Burner Type: Power™ Burner
Left Rear Element-Burner Power: 15,000 BTU
Left Rear Element-Burner Type: Burner
Number of Cooking Element-Burners: 6
Power Boost: No
Right Front Element-Burner Power: 20,000 BTU
Right Front Element-Burner Type: Burner
Right Rear Element-Burner Power: 15,000 BTU
Right Rear Element-Burner Type: Burner
Automatic Pan Detection: No
Number of Grates: 3

Certifications


ADA Compliant: Yes
Prop 65: Standard
UL: Yes

Ventilation Details


Downdraft Vent: No

Grate Details


Grate Details:
  • Cast Iron Grates
  • Continuous
  • Matte Finish
JGCP436WP
Pro-Style® 36"Gas Rangetop

Dimensions


Depth: 27-1/8 in
Gross Weight: 135 lbs
Height: 7-1/2 in
Net Weight: 0 lbs
Width: 35-5/8 in
Common Size: 36 in
Maximum Height: 15-3/4 in

Controls


Control Type: Knobs
Control Location: Front

Electrical


Power Cord Included: Yes
Amps: 15
Hz: 60
Volts: 120
