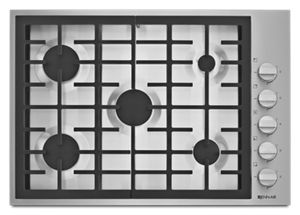

Pro-Style® 30" 5-Burner Gas Cooktop

Pro-Style® 30" 5-Burner Gas Cooktop

Signature Features

Low-Profile Design

With an extremely low profile, you can have a minimal look —nearly flush with the countertop — for an integrated transition to the cooktop.

6,000 BTU Brass Simmer Burner

Melt chocolate and butter or simmer sauces just below boiling with a high-precision burner that offers a wide range of power.

Electronic Ignition and Flame-Sensing™ Re-ignition

Gas burners light reliably every time, and if a draft blows the flames out, they are automatically re-ignited.

Pro-Style® Stainless Design

Make a bold statement with a commercial-styled cooktop and match your other Jenn-Air® Pro-Style® Stainless appliances.

White LED Burner Indicator

White indicator light glows indicating when a burner is on, providing a modern look and a convenient reminder for cooks.

9,000 BTU Brass Burner

Perfect for everyday cooking, this brass burner also allows you to meet special cooking needs like sautéing and braising.

18,000 BTU Brass PowerBurner

Enjoy the elegance of brass and robust heat from this PowerBurner that’s necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.

Single Point Electronic Ignition and Flame-Sensing™ Re-ignition

If the flame is accidentally blown out by a draft, a spark occurs that automatically re-ignites the extinguished burner.

Infinite Burner Control Settings

Enjoy precise temperature controls by selecting your preferred burner setting — from low to high and everywhere in between.

Technical Specifications

Details

Design Expression: Stainless Steel
Digital Display: No
Fuel Type: Gas
LP Convertible: Yes - Kit Included

Exterior Details

Knob Type: Metal
Knob Color: Stainless Steel

Cooktop Details

Cooktop Surface Color: Stainless
Cooktop Surface Material: Stainless Steel
Griddle Included: N/A
Heating Element On Indicator Light: Yes
Hot Surface Indicator Light: No
Ignition Type: Flame-Sensing™ Re-ignition
Combination Match with Oven:
  • JJW2424
  • JJW2427
  • JJW2430
  • JJW3430
  • JJW6024
Cooktop Selections: Simmer
Installs Over Built-In Oven: Yes

Certifications

ADA Compliant: Yes
Prop 65: Standard

Certifications

UL: Yes

Element/Burner Details

Center Front Element-Burner Power: 15,000 BTU
Cooktop Element Style: Sealed Burner
Cooktop Type: Traditional
Left Front Element-Burner Power: 18,000 BTU
Left Front Element-Burner Type: Power™ Burner
Left Rear Element-Burner Power: 12,000 BTU
Left Rear Element-Burner Type: Burner
Number of Cooking Element-Burners: 5
Power Boost: No
Right Front Element-Burner Power: 9,000 BTU
Right Front Element-Burner Type: Burner
Right Rear Element-Burner Power: 6,000 BTU
Right Rear Element-Burner Type: Simmer
Automatic Pan Detection: No
Number of Grates: 3

Grate Details

Grate Details:
  • Dishwasher Safe
  • Individual
  • Matte Finish
  • Steel Grates

Ventilation Details

Downdraft Vent: No
Ventilation Type: Updraft
JGC7530BP
Pro-Style® 30" 5-Burner Gas Cooktop

Dimensions

Depth: 21 in
Gross Weight: 63-1/2 lbs
Height: 4-1/2 in
Net Weight: 0 lbs
Width: 30 in
Common Size: 30 in

Controls

Control Type: Knobs
Control Location: Right Side

Electrical

Power Cord Included: Yes
Amps: 15
Hz: 60
Volts: 120
