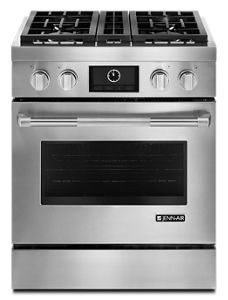

Pro-Style® 30" Dual-Fuel Range with MultiMode® Convection

Pro-Style® 30" Dual-Fuel Range with MultiMode® Convection

Signature Features

Dual-Fan MultiMode® True Convection System

This system features an oval heating element and two round fans that distribute heat evenly and thoroughly throughout the oven. Six different convection cooking modes, including bake, roast and broil, all deliver superbly consistent results.

5,000 BTU Simmer Burner

With a power output ranging from 5,000 BTUs to a gentle 700 BTUs, this simmer burner gives you maximum control while simmering sauces and melting delicate ingredients like chocolate and butter.

Four Sealed Burners

The sealed burners, which prevent spills and drips from entering the burner box, make it easy to maintain a pristine cooking surface.

One 20,000 BTU Stacked PowerBurner

Each PowerBurner features two burners stacked in one location on the cooking service with a maximum output of 20,000 BTUs providing the power for high-temperature cooking techniques such as wok cooking and flash frying.

7-Inch Full-Color Touch-Anywhere LCD Display

This luxury double wall oven’s stylish LCD control panel features dynamic touch-screen technology, which allows you to navigate effortlessly through settings like temperature and cooking time.

Convertible to LP

This luxury dual-fuel range allows you to easily adapt your energy source from natural gas to propane.

Two 15,000 BTU Burners

Two high-heat burners offer powerful output, allowing you to cook several dishes at maximum heat at the same time.

Auto Convection Conversion

This convenient feature automatically converts conventional cook time and/or temperature from any recipe to the appropriate convection settings, taking the guesswork out of convection cooking for consistent, effortless results.

Electronic Ignition and Flame-Sensing™ Re-ignition

If the flame is accidentally blown out by a draft, a spark occurs that automatically re-ignites the extinguished burner.

Technical Specifications

Exterior Details


Door Type: Metal & Glass
Handle Color: Stainless Steel
Handle Material: Metal
Knob Type: Metal
Knob Color: Stainless Steel
Oven Control Location: Front
Oven Control Type: Electronic Touch
Oven Window Size: Large

Details


Design Expression: Pro-Style®
Fuel Type: Dual Fuel
LP Convertible: Yes
Oven Configuration: Single Oven
Power On Indicator Light: Yes
Power Outage Compatible: Yes
Range Configuration: Freestanding
Range Type: Professional
Oven Selections:
  • Clock
  • Control Lock
  • Delay Start
  • Favorites
  • Proofing
  • Sabbath Mode
  • Temperature Probe
  • Timer

Cooktop Details


Cooktop Control Type: Knobs
Cooktop Control Location: Front
Cooktop Surface Color: Black
Cooktop Surface Material: Porcelain Coated Steel
Heating Element On Indicator Light: No
Hot Surface Indicator Light: No
Ignition Type: Electronic

Oven Cavity Details


Broiler Location: Top of Oven

Oven Cavity Details


Convection Element Type: Dual Fan
Convection Functions:
  • Bake
  • Broil
  • Roast
Hidden Bake Element: Yes
Interior Color: Grey
Number of Oven Lights: 1
Number of Oven Racks: 3
Number of Rack Guides: 5
Oven Cleaning Type: Self-Cleaning
Oven Light Type: Halogen
Oven Rack Type: Standard
Automatic Convection Conversion Temperature Adjust: Yes

Element/Burner Details


Center Front Element-Burner Type: Sealed Burner
Cooktop Element Style: Sealed Burner
Left Front Element-Burner Power: 20,000 BTU
Left Front Element-Burner Type: Dual Flame
Left Rear Element-Burner Power: 15,000 BTU
Left Rear Element-Burner Type: Sealed Burner
Number of Cooking Element-Burners: 4
Right Front Element-Burner Power: 15,000 BTU
Right Front Element-Burner Type: Sealed Burner
Right Rear Element-Burner Power: 5,000 BTU
Right Rear Element-Burner Type: Simmer
Number of Grates: 3

Certifications


ADA Compliant: ADA Height and Operation Compliant
Prop 65: Standard
UL: Yes

Grate Details


Grate Details:
  • Cast Iron Grates
  • Continuous
  • Matte Finish
JDRP430WP
Pro-Style® 30" Dual-Fuel Range with MultiMode® Convection

Dimensions


Depth: 29-1/4 in
Depth With Door Open 90 Degree: 45-3/4 in
Gross Weight: 413 lbs
Height: 36-3/4 in
Net Weight: 0 lbs
Oven Interior Depth: 17-5/8 in
Oven Interior Height: 16 in
Oven Interior Width: 13 in
Width: 29-7/8 in

Controls


Display Color: Full Color
Electronic Display Type: LCD Screen

Electrical


Power Cord Included: No
